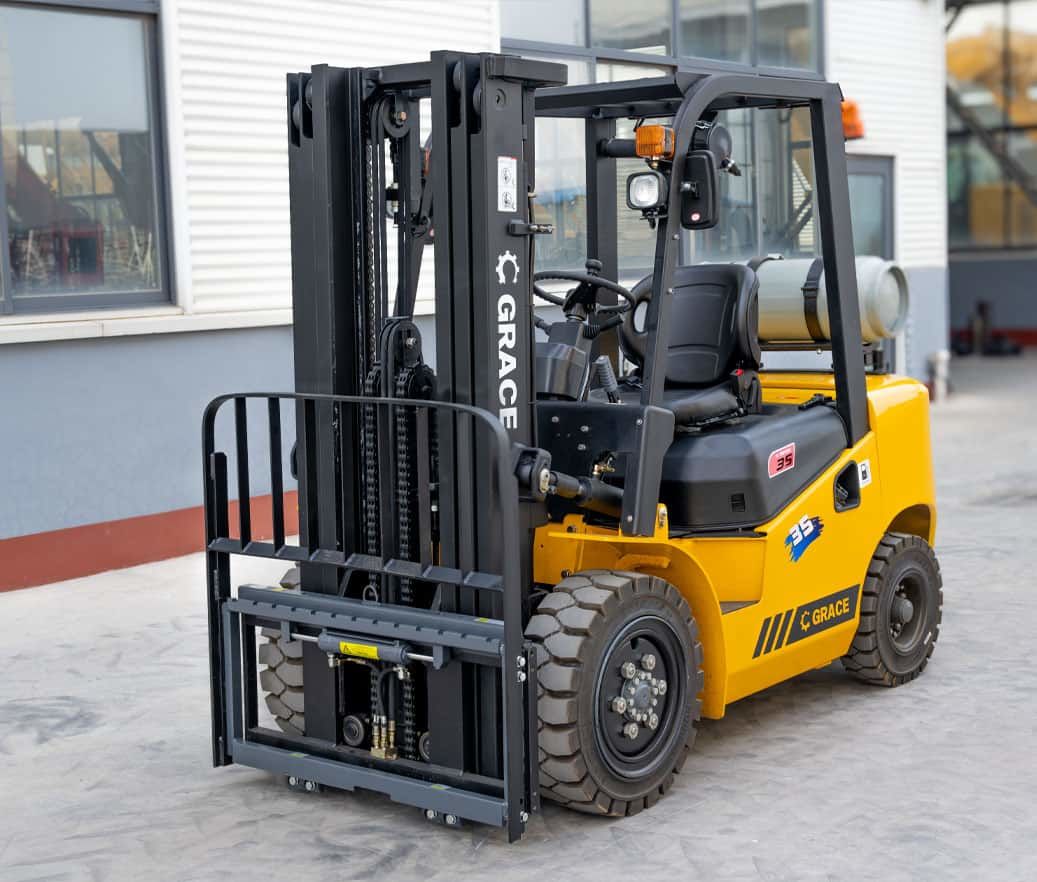

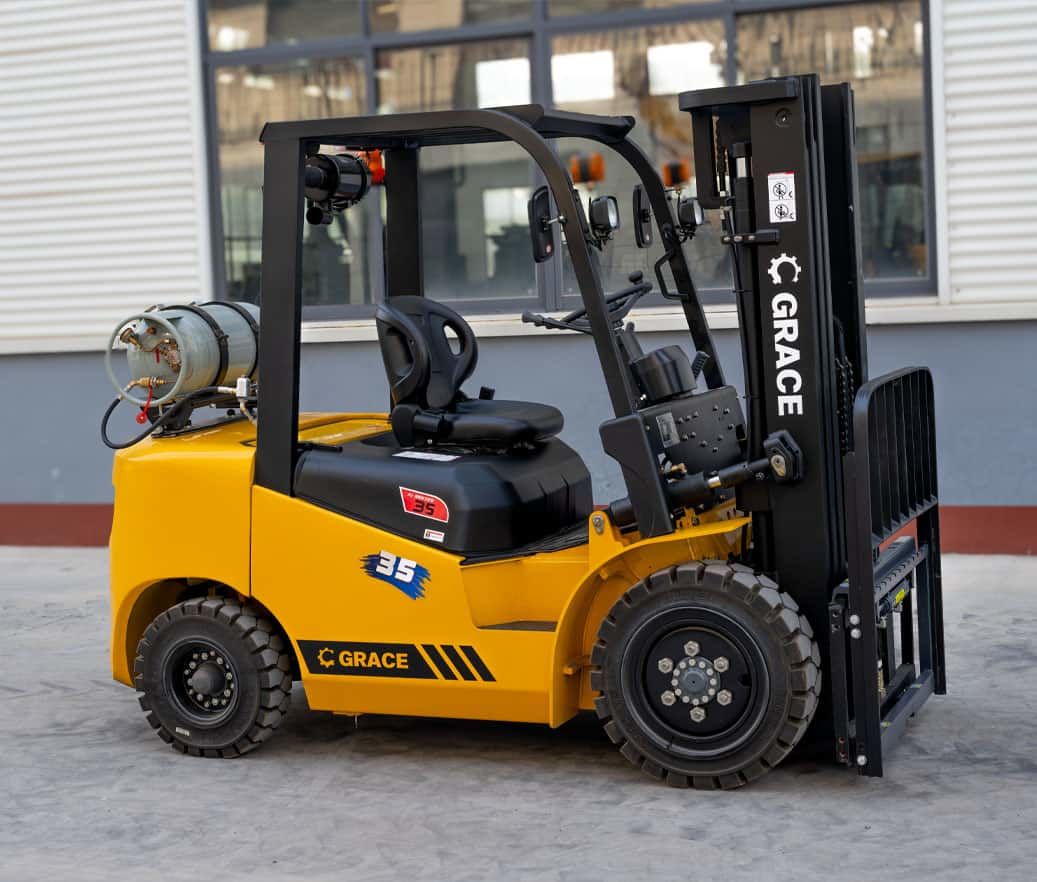

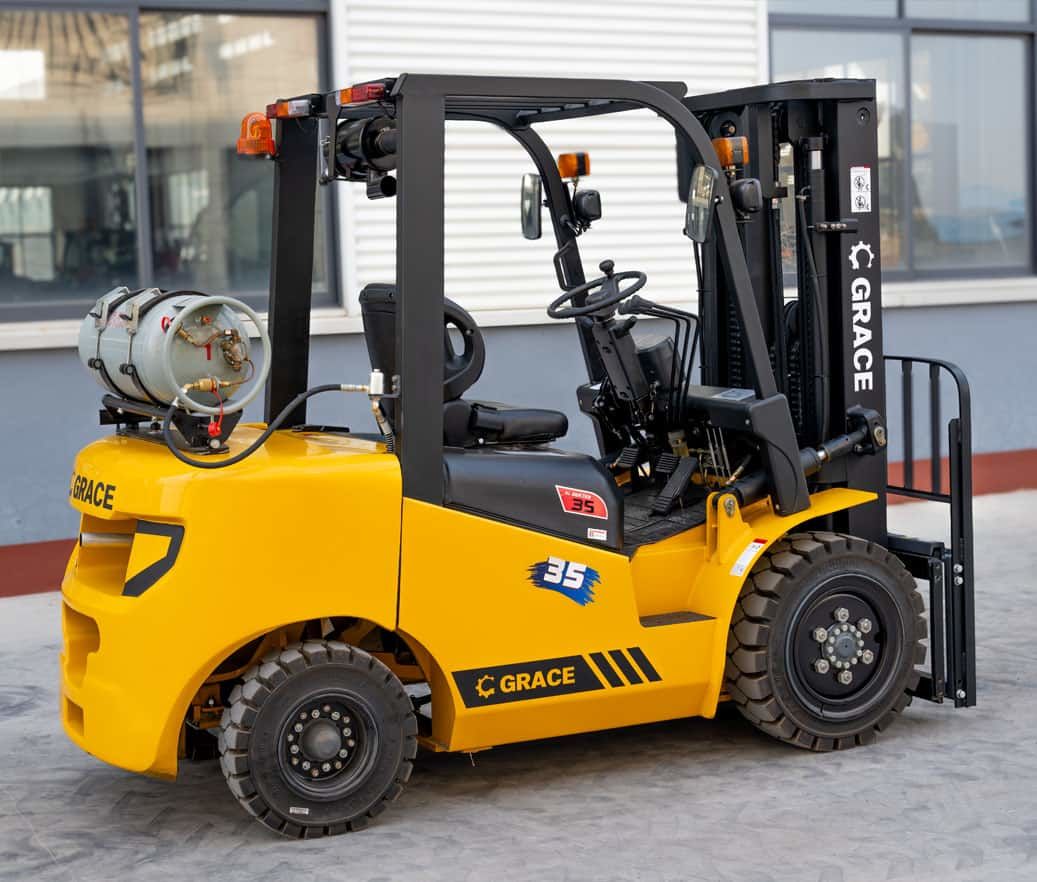

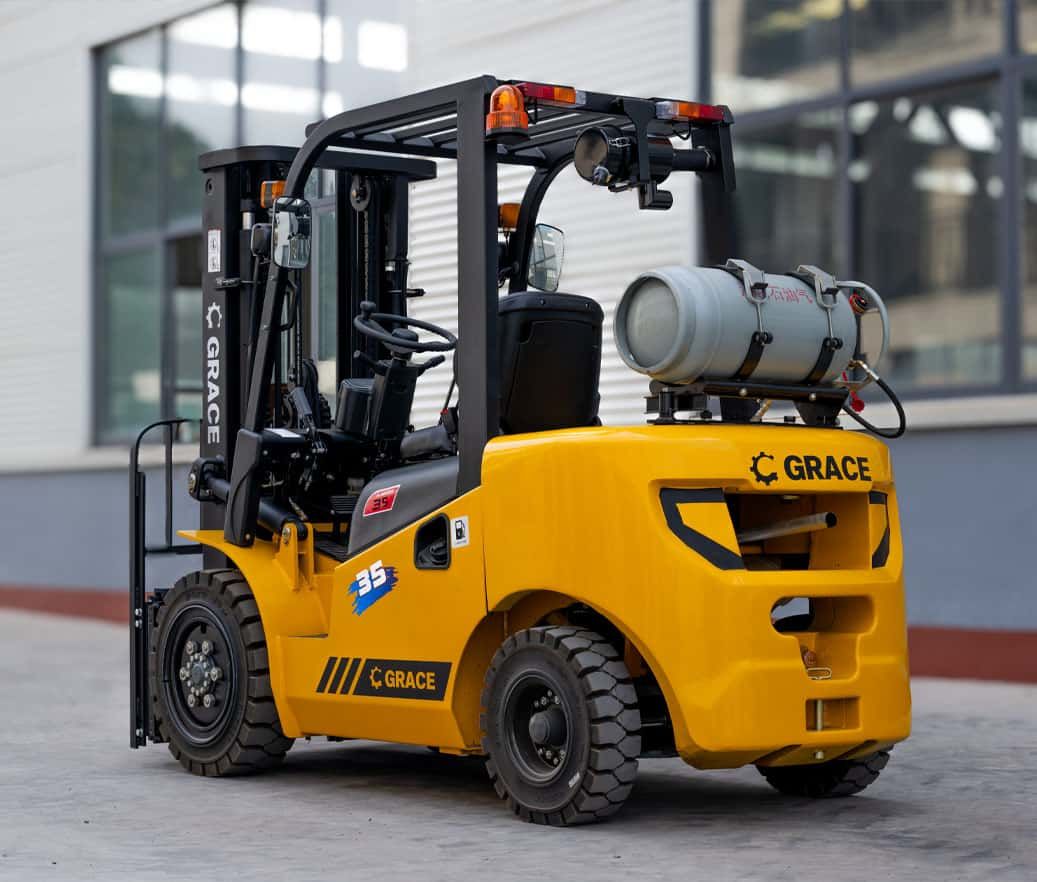

3.5 ton lpg forklift

Affordable and durable 3.5 ton diesel forklift. Multiple engine options.

Brand

Item NO.

Order(MOQ)

Product Origin

Color

Shipping Port

Inquiry now

Product Detail



























Product advantages

  1. Wide view mast design: Our forklift boasts an ingenious mast design that grants the operator an expansive field of vision. This feature not only enhances safety but also boosts the efficiency of loading and unloading operations.

  2. Load Sensing Priority Steering Hydraulic System: Experience nimble and responsive steering like never before, thanks to our load sensing priority steering hydraulic system. This innovation not only ensures flexible maneuverability but also accelerates mast lifting speed by a remarkable 20%.

  3. Top-Quality Components from Trusted Brands: Rest assured, all critical components such as the engine and gearbox are fortified by renowned domestic and international brands known for their unwavering commitment to quality.

  4. Rugged Overhead Guard for Enhanced Safety and Comfort: Safety is paramount, and that's why our forklift's overhead guard is meticulously crafted from high-strength steel sheets, employing precision molding techniques.

Product Details



Product specifications



Model   CYPD30 CYPD35 CYPD40
Rated lifting load kg 3000 3500 4000
Load center distance mm 500
lift height mm 3000
Overall length (Withoutfork) mm 2730 2775 2890
Overall Width mm 1225 1225 1410
Overhead guard height mm 2090 2090 2120
Wheelbase mm 1700 1700 1900
Minimum ground clearance mm 140
Mast tilt angle (front/rear) % 6° /12°
Front Tire   28×9-15-12PR 28×9-15-12PR 250-15-16PR
Rear Tire   6.50-10-10PR 6.50-10-10PR 6.50-10-10PR
Minimum turning radius (outer side) mm 2440 2480 2700
Travel (Empty load) Km/h 20 20 19
Fork size mm 1070×125×45 1070×125×50 1070×125×50
Service weight Kg 4300 4500 5100
Engine model   GCT (NISSAN)





Optional configuration

Standard version configuration:2 stage mast / Maximum lifting height 3000 mm / Xinchai 490BPG engine / no side shifter / Pneumatic tire /

Optional configuration : Side shifter / Fork Positioner / 3 stage mast / Maximum lifting height from 4500 mm to 6000 mm / Solid tires / Double wheels / Closed Cabin / Isuzu engine / Yanma engine / Mitsubishi / Euro 5 Engine / Epa engine
