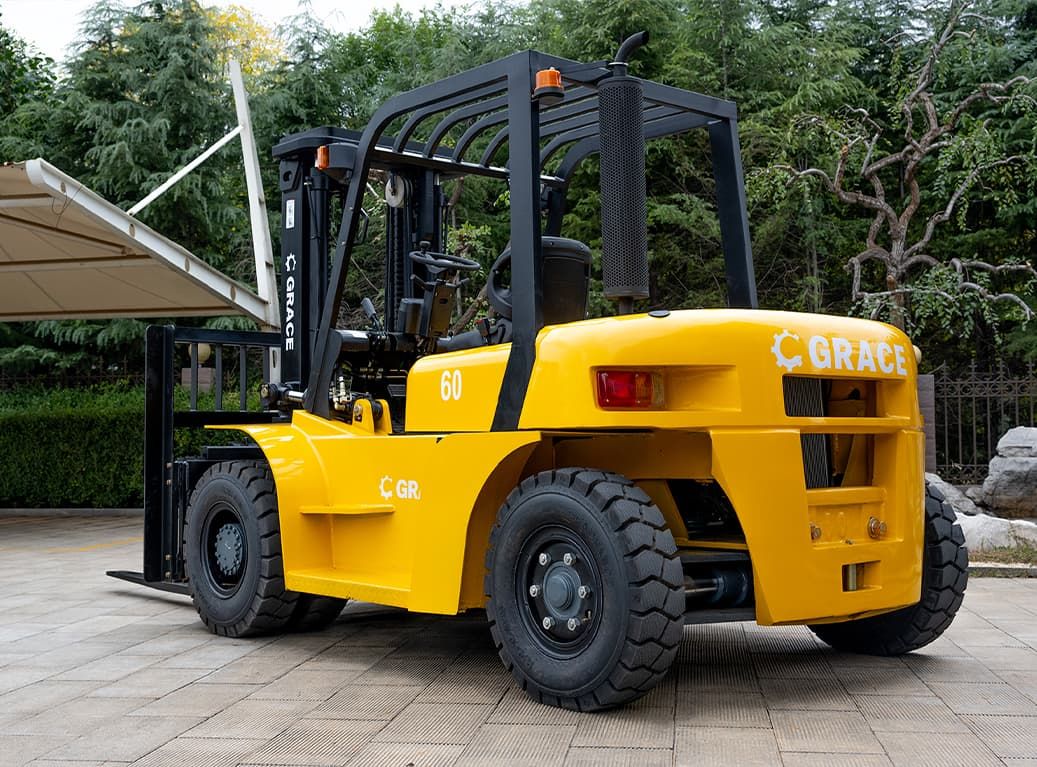

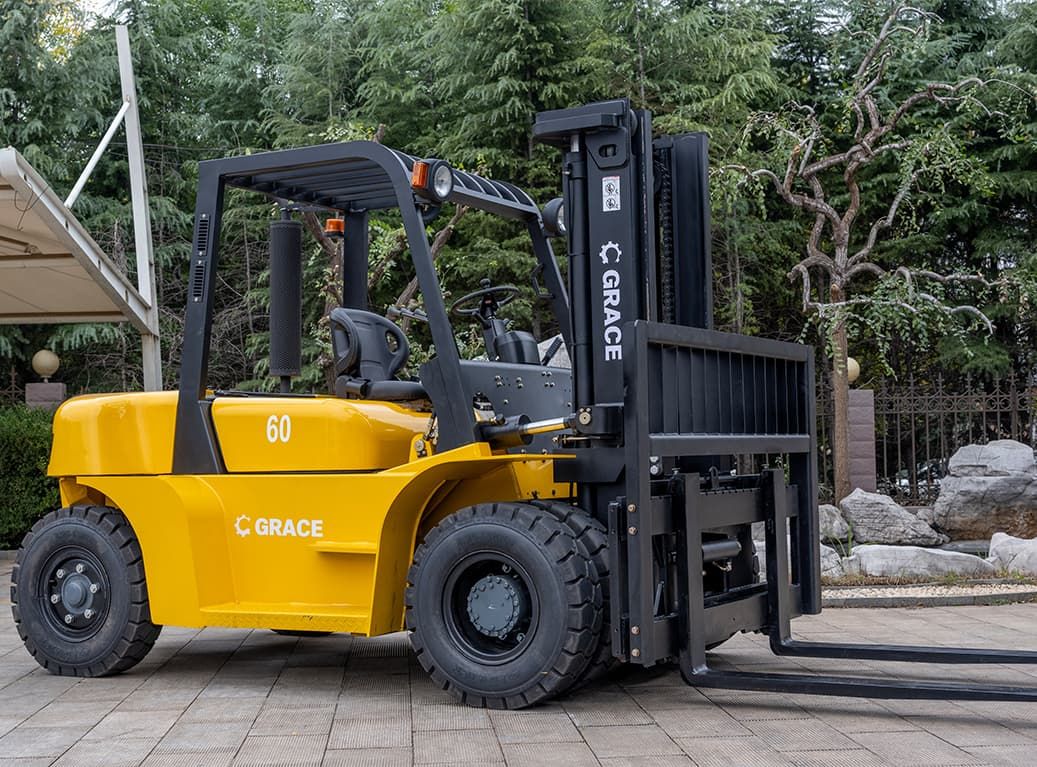

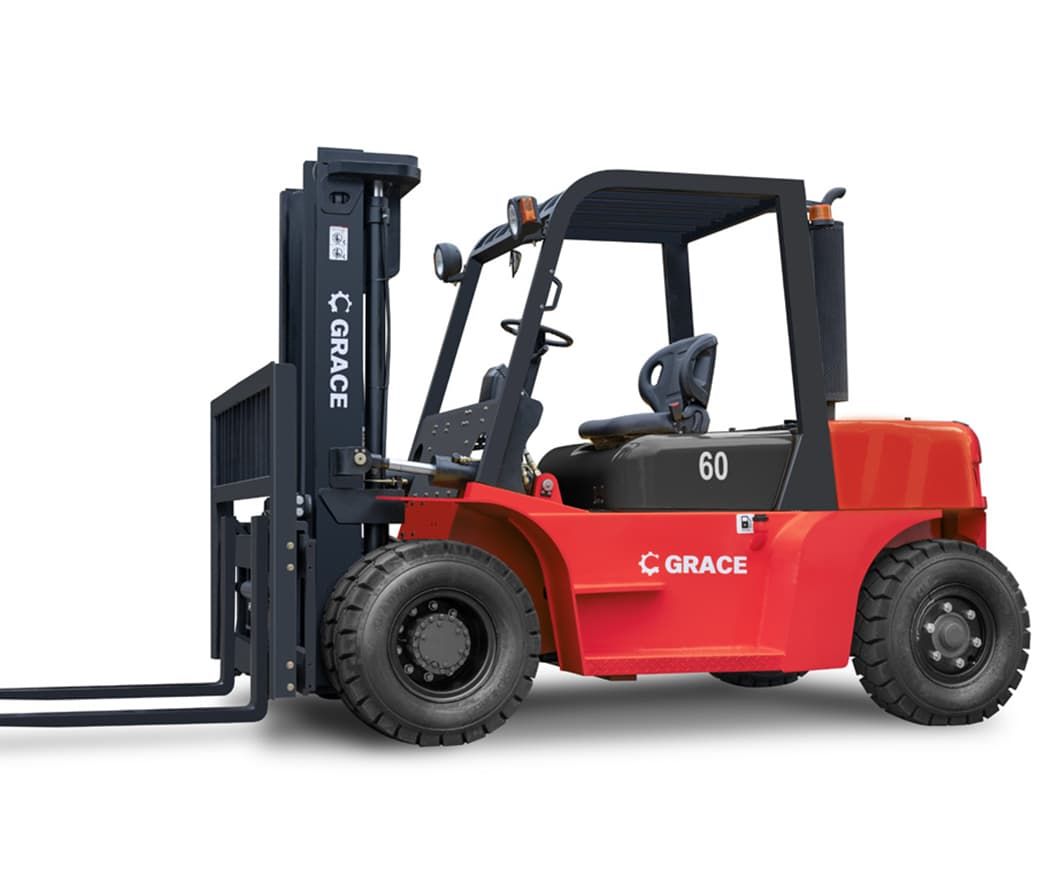

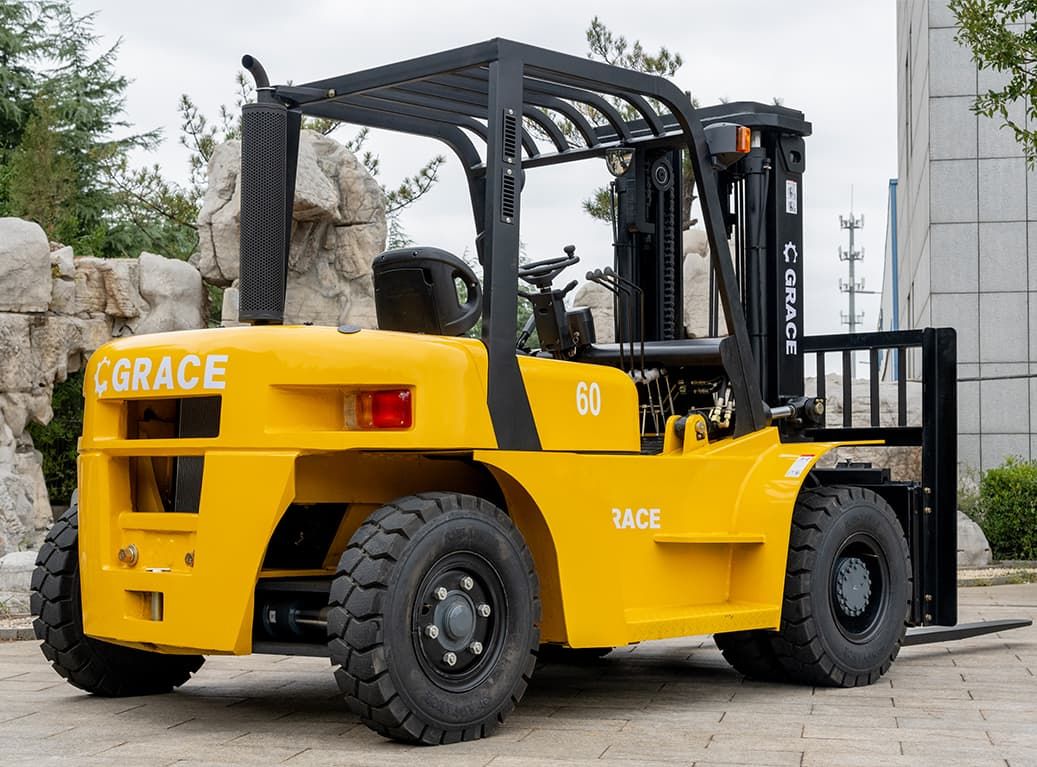

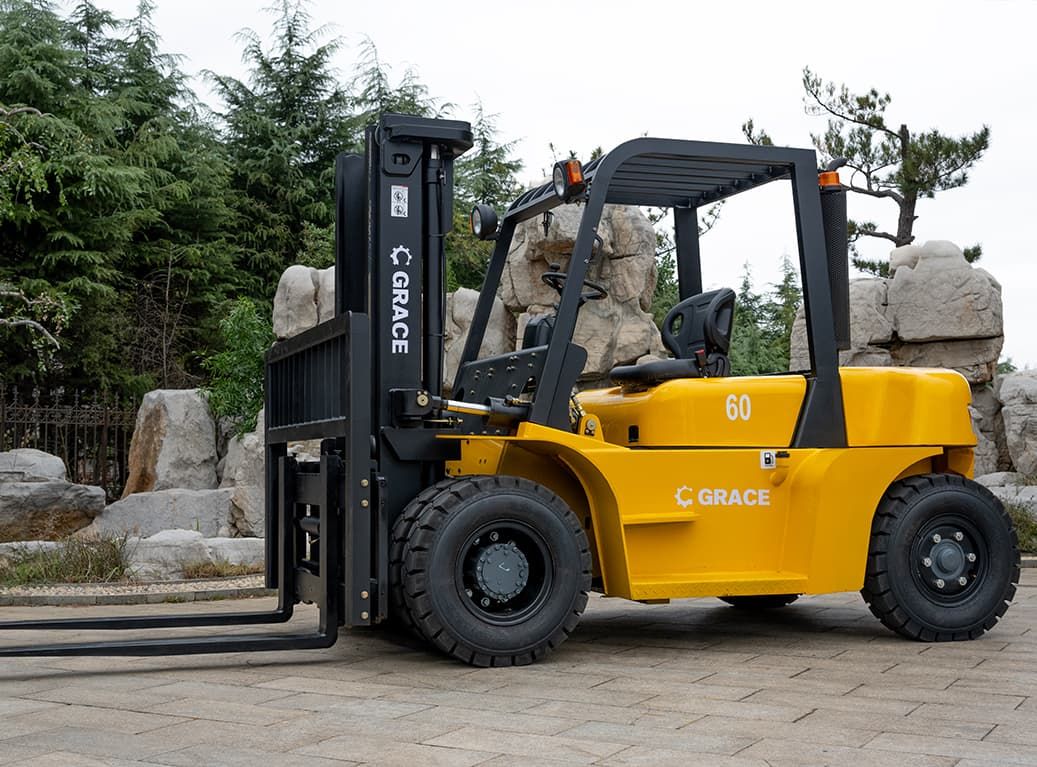

5 ton diesel forklift
Brand
GRACE
Item NO.
CPCD50
Order(MOQ)
1
Product Origin
CHINA
Color
Customer Customization
Shipping Port
Qingdao Port
Categories
How can we help you
You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.
Contact UsNew Products
Product Detail
Product advantages
-
Wide view mast design: Our forklift boasts an ingenious mast design that grants the operator an expansive field of vision. This feature not only enhances safety but also boosts the efficiency of loading and unloading operations.
-
Load Sensing Priority Steering Hydraulic System: Experience nimble and responsive steering like never before, thanks to our load sensing priority steering hydraulic system. This innovation not only ensures flexible maneuverability but also accelerates mast lifting speed by a remarkable 20%.
-
Top-Quality Components from Trusted Brands: Rest assured, all critical components such as the engine and gearbox are fortified by renowned domestic and international brands known for their unwavering commitment to quality.
-
Rugged Overhead Guard for Enhanced Safety and Comfort: Safety is paramount, and that's why our forklift's overhead guard is meticulously crafted from high-strength steel sheets, employing precision molding techniques.
Product Details
Product specifications
| Model | CPCD40 | CPCD50 | CPCD60 | |
|---|---|---|---|---|
| Rated lifting load | kg | 4000 | 5000 | 6000 |
| Load center distance | mm | 500 | 500 | 600 |
| Lift height | mm | 3000 | 3000 | 3000 |
| Overall length | mm | 2930 | 3440 | 3440 |
| Overall Width | mm | 1290 | 2010 | 2010 |
| Overhead guard height | mm | 2180 | 2340 | 2430 |
| Wheelbase | mm | 1900 | 2250 | 2250 |
| Minimum ground clearance | mm | 140 | 150 | 200 |
| Mast tilt angle (front/rear) | % | 6°/12° | ||
| Front Tire | 250-15-16PR | 8.25-15-14PR | 8.25-15-14PR | |
| Rear Tire | 7.00-12-12PR | 8.25-15-14PR | 8.25-15-14PR | |
| Minimum turning radius (outer side) | mm | 2710 | 3250 | 3250 |
| Max.Gradeability | % | 20 | 20 | 20 |
| Fork size | mm | 1070×150×50 | 1220×150×60 | 1220×150×60 |
| Forklift weight | kg | 4950 | 8150 | 8750 |
| Engine model | XinchaiC490BPG | XinchaiC495BPG | XichaiCa6110125G2 | |
| Optionl Engine model | ISUZU C240 | ISUZU 4JG2 | ISUZU 6BG1 | |
Optional configuration
Standard version configuration：2 stage mast / Maximum lifting height 3000 mm / Xinchai 490BPG engine / no side shifter / Pneumatic tire /
Optional configuration : Side shifter / Fork Positioner / 3 stage mast / Maximum lifting height from 4500 mm to 6000 mm / Solid tires / Double wheels / Closed Cabin / Isuzu engine / Yanma engine / Mitsubishi / Euro 5 Engine / Epa engine
